O'Day Sailboat Specifications - 1967

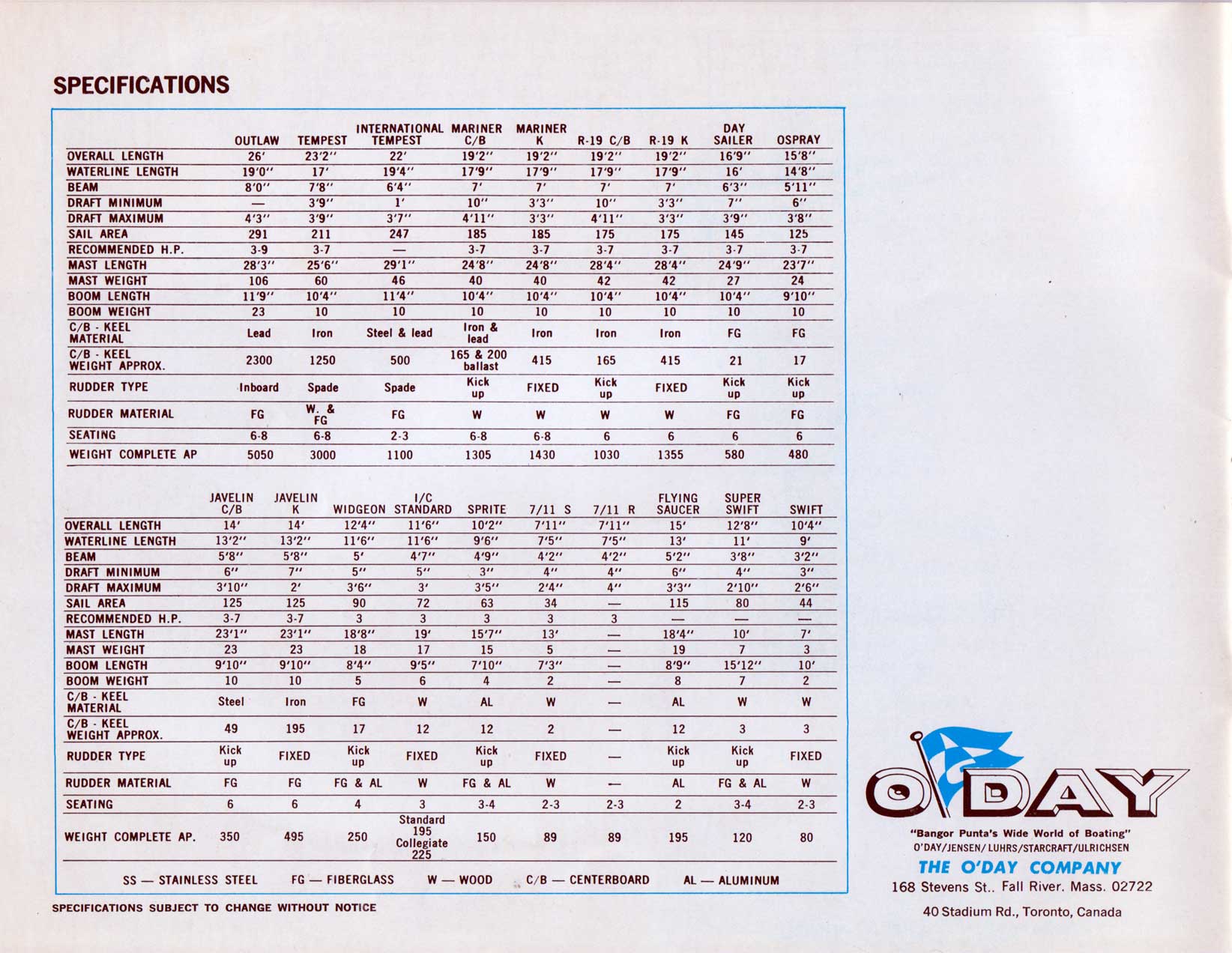

O'Day Sailboat Brochure - Specifications - All Sailboats. | GGA Image ID # 23ef03b369. Click to View a Larger Image.

Sailboat Specifications for the O'Day Outlaw, Tempest, International Tempest, Mariner C/B, Mariner K, Rhodes 19 C/B, Rhodes 19 K, Day Sailor, Ospray, Javelin C/B, Javelin K, Widgeon, I/C Standard, Sprite, 7/11 S, 7/11 R, Flying Saucer, Super Swift, and the Swift.

O'Day Outlaw Specifications

• Overall Length 26'
• Waterline Length 19'0"
• Beam 8'0"
• Draft Minimum —
• Draft Maximum 4'3"
• Sail Area 291
• Recommended H.P. 3 to 9
• Mast Length 28'3"
• Mast Weight 106
• Boom Length 11'9"
• Boom Weight 23
• C/b-Keel Material Lead
• C/b-Keel Weight Approx. 2300
• Rudder Type Inboard
• Rudder Material Fg
• Seating 6 to 8
• Weight Complete Ap 5050

O'Day Tempest Specifications

• Overall Length 23'2"
• Waterline Length 17'
• Beam 7'8"
• Draft Minimum 3'9"
• Draft Maximum 3'9"
• Sail Area 211
• Recommended H.P. 3 to 7
• Mast Length 25'6"
• Mast Weight 60
• Boom Length 10'4"
• Boom Weight 10
• C/b-Keel Material Iron
• C/b-Keel Weight Approx. 1250
• Rudder Type Spade
• Rudder Material W. & Fg
• Seating 6 to 8
• Weight Complete Ap 3000

O'Day International Tempest Specifications

• Overall Length 22'
• Waterline Length 19'4"
• Beam 6'4"
• Draft Minimum 1'
• Draft Maximum 3'7"
• Sail Area 247
• Recommended H.P. —
• Mast Length 29'1"
• Mast Weight 46
• Boom Length 11'4"
• Boom Weight 10
• C/b-Keel Material Steel & Lead
• C/b-Keel Weight Approx. 500
• Rudder Type Spade
• Rudder Material Fg
• Seating 2 to 3
• Weight Complete Ap 1100

O'Day Mariner C/B Specifications

• Overall Length 19'2"
• Waterline Length 17'9"
• Beam 7'
• Draft Minimum 10"
• Draft Maximum 4'11"
• Sail Area 185
• Recommended H.P. 3 to 7
• Mast Length 24'8"
• Mast Weight 40
• Boom Length 10'4"
• Boom Weight 10
• C/B-Keel Material Iron & Lead
• C/B-Keel Weight Approx. 165 & 200 Ballast
• Rudder Type Kick Up
• Rudder Material w
• Seating 6 to 8
• Weight Complete Ap 1305

O'Day Mariner K Specifications

• Overall Length 19'2"
• Waterline Length 17'9"
• Beam 7'
• Draft Minimum 3'3"
• Draft Maximum 3'3"
• Sail Area 185
• Recommended H.P. 3 to 7
• Mast Length 24'8"
• Mast Weight 40
• Boom Length 10'4"
• Boom Weight 10
• C/b-Keel Material Iron
• C/b-Keel Weight Approx. 415
• Rudder Type Fixed
• Rudder Material W
• Seating 6 to 8
• Weight Complete Ap 1430

O'Day Rhodes 19 C/B Specifications

• Overall Length 19'2"
• Waterline Length 17'9"
• Beam 7'
• Draft Minimum 10"
• Draft Maximum 4'11"
• Sail Area 175
• Recommended H.P. 3 to 7
• Mast Length 28'4"
• Mast Weight 42
• Boom Length 10'4"
• Boom Weight 10
• C/B -Keel Material Iron
• C/B -Keel Weight Approx. 165
• Rudder Type Kick Up
• Rudder Material W
• Seating 6
• Weight Complete Ap 1030

O'Day Rhodes 19 K Specifications

• Overall Length 19'2"
• Waterline Length 17'9"
• Beam 7'
• Draft Minimum 3'3"
• Draft Maximum 3'3"
• Sail Area 175
• Recommended H.P. 3 to 7
• Mast Length 28'4"
• Mast Weight 42
• Boom Length 10'4"
• Boom Weight 10
• C/B -Keel Material Iron
• C/B -Keel Weight Approx. 415
• Rudder Type Fixed
• Rudder Material W
• Seating 6
• Weight Complete Ap 1355

O'Day Day Sailer Specifications

• Overall Length 16'9"
• Waterline Length 16'
• Beam 6'3"
• Draft Minimum 7"
• Draft Maximum 3'9"
• Sail Area 145
• Recommended H.P. 3 to 7
• Mast Length 24'9"
• Mast Weight 27
• Boom Length 10'4"
• Boom Weight 10
• C/B -Keel Material Fg
• C/B -Keel Weight Approx. 21
• Rudder Type Kick Up
• Rudder Material Fg
• Seating 6
• Weight Complete Ap 580

O'Day Ospray Specifications

• Overall Length 15'8"
• Waterline Length 14'8"
• Beam 5'11"
• Draft Minimum 6"
• Draft Maximum 3'8"
• Sail Area 125
• Recommended H.P. 3 to 7
• Mast Length 23'7"
• Mast Weight 24
• Boom Length 9'10"
• Boom Weight 10
• C/B -Keel Material Fg
• C/B -Keel Weight Approx. 17
• Rudder Type Kick
• Rudder Material Fg
• Seating 6
• Weight Complete Ap 480

O'Day Javelin C/B Specifications

• Overall Length 14'
• Waterline Length 13'2"
• Beam 5'8"
• Draft Minimum 6"
• Draft Maximum 3'10"
• Sail Area 125
• Recommended H.P. 3 to 7
• Mast Length 23'1"
• Mast Weight 23
• Boom Length 9'10"
• Boom Weight 10
• C/B -Keel Material Steel
• C/B -Keel Weight Approx. 49
• Rudder Type Kick Up
• Rudder Material Fg
• Seating 6
• Weight Complete Ap 350

O'Day Javelin K Specifications

• Overall Length 14'
• Waterline Length 13'2"
• Beam 5'8"
• Draft Minimum 7"
• Draft Maximum 2'
• Sail Area 125
• Recommended H.P. 3 to 7
• Mast Length 23'1"
• Mast Weight 23
• Boom Length 9'10"
• Boom Weight 10
• C/B -Keel Material Iron
• C/B -Keel Weight Approx. 195
• Rudder Type Fixed
• Rudder Material Fg
• Seating 6
• Weight Complete Ap 495

O'Day Widgeon Specifications

• Overall Length 12'4"
• Waterline Length 11'6"
• Beam 5'
• Draft Minimum 5"
• Draft Maximum 3'6"
• Sail Area 90
• Recommended H.P. 3
• Mast Length 18'8"
• Mast Weight 18
• Boom Length 8'4"
• Boom Weight 5
• C/B -Keel Material Fg
• C/B -Keel Weight Approx. 17
• Rudder Type Kick Up
• Rudder Material Fg & Al
• Seating 4
• Weight Complete Ap 250

O'Day I/C Standard Specifications

• Overall Length 11'6"
• Waterline Length 11'6"
• Beam 4'7"
• Draft Minimum 5"
• Draft Maximum 3'
• Sail Area 72
• Recommended H.P. 3
• Mast Length 19'
• Mast Weight 17
• Boom Length 9'5"
• Boom Weight 6
• C/B -Keel Material W
• C/B -Keel Weight Approx. 12
• Rudder Type Fixed
• Rudder Material W
• Seating 3
• Weight Complete Ap Standard 195; Collegiate 225

O'Day Sprite Specifications

• Overall Length 10'2"
• Waterline Length 9'6"
• Beam 4'9"
• Draft Minimum 3"
• Draft Maximum 3'5"
• Sail Area 63
• Recommended H.P. 3
• Mast Length 15'7"
• Mast Weight 15
• Boom Length 7'10"
• Boom Weight 4
• C/b -Keel Material Al
• C/b -Keel Weight Approx. 12
• Rudder Type Kick Up
• Rudder Material Fg & Al
• Seating 3 to 4
• Weight Complete Ap 150

O'Day 7/11 S Features

• Overall Length 7'11"
• Waterline Length 7'5"
• Beam 4'2"
• Draft Minimum 4"
• Draft Maximum 2'4"
• Sail Area 34
• Recommended H.P. 3
• Mast Length 13'
• Mast Weight 5
• Boom Length 7'3"
• Boom Weight 2
• C/b - Keel Material W
• C/b - Keel Weight Approx. 2
• Rudder Type Fixed
• Rudder Material W
• Seating 2 to 3
• Weight Complete Ap 89

O'Day 7/11 R Features

Overall Length 7'11"

Waterline Length 7'5"

Beam 4'2"

Draft Minimum 4"

Draft Maximum 4"

Sail Area —

Recommended H.P. 3

Mast Length —

Mast Weight —

Boom Length —

Boom Weight —

C/B - Keel Material —

C/B - Keel Weight Approx. —

Rudder Type —

Rudder Material —

Seating 2 to 3

Weight Complete Ap 89

O'Day Flying Saucer Features

• Overall Length 15'
• Waterline Length 13'
• Beam 5'2"
• Draft Minimum 6"
• Draft Maximum 3'3"
• Sail Area 115
• Recommended H.P. —
• Mast Length 18'4"
• Mast Weight 19
• Boom Length 8'9"
• Boom Weight 8
• C/B - Keel Material Al
• C/B - Keel Weight Approx. 12
• Rudder Type Kick Up
• Rudder Material Al
• Seating 2
• Weight Complete Ap 195

O'Day Super Swift Features

• Overall Length 12'8"
• Waterline Length 11'
• Beam 3'8"
• Draft Minimum 4"
• Draft Maximum 2'10"
• Sail Area 80
• Recommended H.P. —
• Mast Length 10'
• Mast Weight 7
• Boom Length 15'12"
• Boom Weight 7
• C/B - Keel Material W
• C/B - Keel Weight Approx. 3
• Rudder Type Kick Up
• Rudder Material Fg & Al
• Seating 3 to 4
• Weight Complete Ap 120

O'Day Swift Features

• Overall Length 10'4"
• Waterline Length 9'
• Beam 3'2"
• Draft Minimum 3"
• Draft Maximum 2'6"
• Sail Area 44
• Recommended H.P. —
• Mast Length 7'
• Mast Weight 3
• Boom Length 10'
• Boom Weight 2
• C/B - Keel Material W
• C/B - Keel Weight Approx. 3
• Rudder Type Fixed
• Rudder Material W
• Seating 2 to 3
• Weight Complete Ap 80

Legend

SS — Stainless Steel

Fg — Fiberglass

W — Wood

C/B — Centerboard

Al — Aluminum

Specifications Subject to Change Without Notice

Bangor Punta's Wide World of Boating

O'Day / Jensen / Luhrs / Starcraft / Ulrichsen / the O'day Company

Fall River. Mass. 02722 | Toronto, Canada

Source: O'Day 1967 Sailboat Catalog

GGA REF: BPODY-002-1967-C-CAT-16
