O'Day Mariner Sailboat with Specifications and Standard Features (1967)
Two Young Couples Demonstrate Using Alternate Outboard Motor Propulsion on the O'Day Mariner. | GGA Image ID # 23eb3115f3
Mariner might be the roomiest 19-footer afloat … a happy combination of day sailer, racer and overnight cruiser.
The perfect balance between her proven hull design and seven-eighths sail plan provides maneuverability, speed, and ease of handling seldom found in a boat that's comfortable for six by day and equipped to cruise four.
All lines and headsails are handled from the cockpit—an advantage for the novice maneuvering in small areas. A simple boom tent converts the cockpit into a sleeping area for two, and there are two full-sized berths below.
Mariner is available with a 415-lb. keel or centerboard with 200 lbs. of inside lead ballast. Both models are easily trailed; one person can launch her and step the mast.

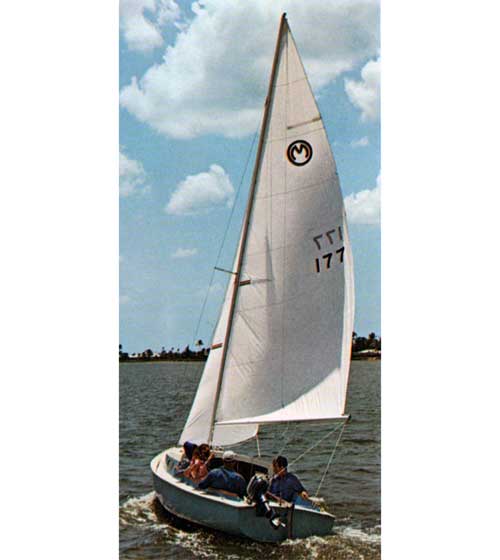

Cruising along the Water in an O'Day Mariner Sailboat. | GGA Image ID # 23eb7cf0a3
Specifications:
- Length: 19' 2";
- Beam: 7';
- Draft: Centerboard model up 10"; down 4'11";
- Keel model 3'3";
- Sail area: 185 sq. ft.

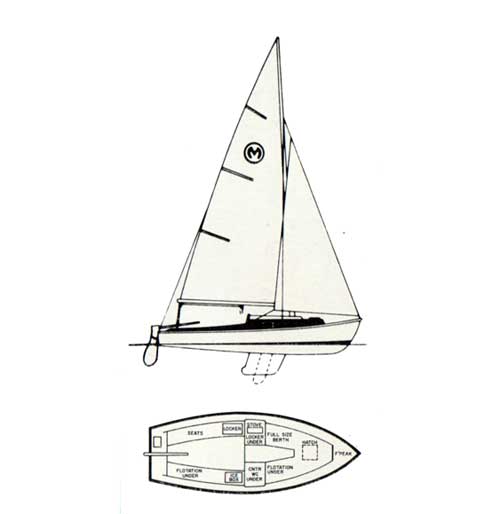

Top and Side Diagrams of the O'Day Mariner Sailboat. | GGA Image ID # 23eb9765b1
Standard Features:
- Outboard well
- Positive foam flotation
- Foam filled spars
- Roller reefiing
- Bow storage locker
- Separate head enclosure
- Separate galley counter w/storage
- Molded-in insulated ice box
- Removable canvas cabin enclosure (lockable)
- Anodized aluminum spars
- Mast stepped on deck
- Wire halyards
- Proven hull design
- Forward ventilating hatch
- Mast tabernacle
- Full length berths
- Storage in cockpit seats
- Drain plug in cockpit
- Bow eye (centerboard model)
- Storage rack under rear deck
- Translucent forward hatch for more cabin light
- Formica galley and head tops
- Cam action main and jib sheet cleats
- Storage shelves over berths
- Philippine mahogany floorboards in cocbpit
- Vinyl gunwale guard
- Adjustable jib sheet leads
- 2 year warranty.
- More Specifications | More Information on the Construction and O'Day Sailboats

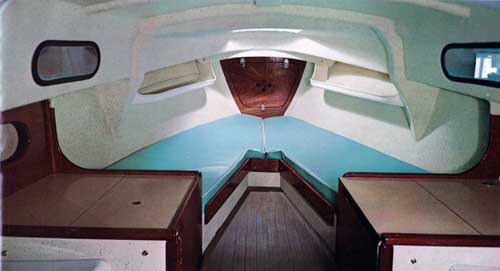

View of the O'Day Mariner Forward Compartment. a Vinyl Cabin Enclosure Which Can Be Shut off and Locked Is Included As Standard Equipment. | GGA Image ID # 23ebbeef30
Source: O'Day 1967 Sailboat Catalog
GG Archives REF: BPODY-002-1967-C-CAT-11
