O'Day Javelin Sailboat with Specifications and Standard Features (1967)

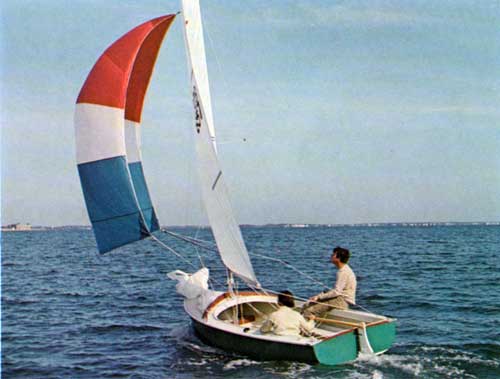

Two People Sailing on the O'Day Javelin Sailboat. | GGA Image ID # 23e650e217

In designing Javelin, a fast-growing class that's being sailed and raced throughout the country, special emphasis was placed on stability (a beam that measures 4'6" at the waterline) and roominess (almost ten feet of cockpit space). All this, without sacrificing speed and maneuverability.

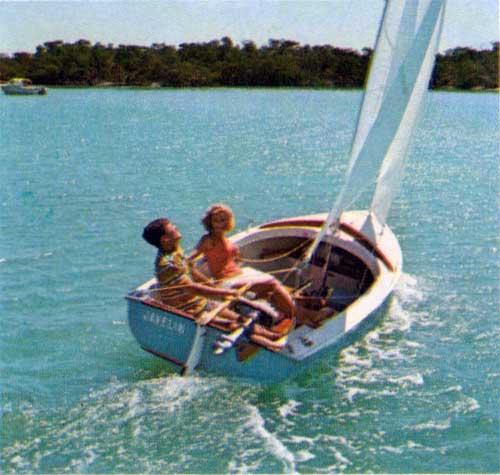

A Young Couple Sailing on the O'Day Javelin Sailboat. | GGA Image ID # 23e744056e

Javelin is unusually stable ... but she'll ghost in zephyrs and plane in heavier winds. She'll move out nicely, too, with a 7 hp outboard or smaller.

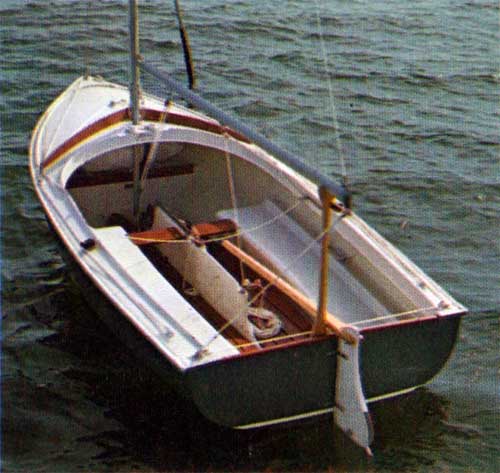

View of the Hull of the O'Day Javelin. | GGA Image ID # 23e7650a4d

Specifications:

• Length: 14';
• Beam: 5'8"; Draft:
• Centerboard up 6"; down 3'10";
• Keel model 2';
• Sail area: 125 sq. ft.

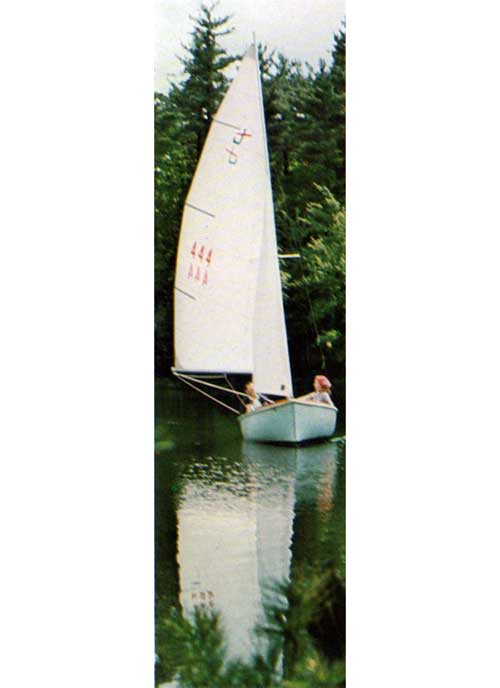

Smooth Sailing in Calm Waters on the O'Day Javelin Sailboat. | GGA Image ID # 23e778e51a

Standard Features:

• Positive foam flotation
• Foam filled spars
• Anodized aluminum spars
• Cam action main and jib cleats
• Roller reefing
• Combination paddle and boom crutch
• Kick-up rudder and centerboard
• Philippine mahogany floorboards Drain plug in cockpit
• Adjustable jib sheet leads
• Bow eye
• Wire jib halyard
• Vinyl gunwale guard
• 2 year warranty.
• More Specifications | More Information on the Construction and O'Day Sailboats

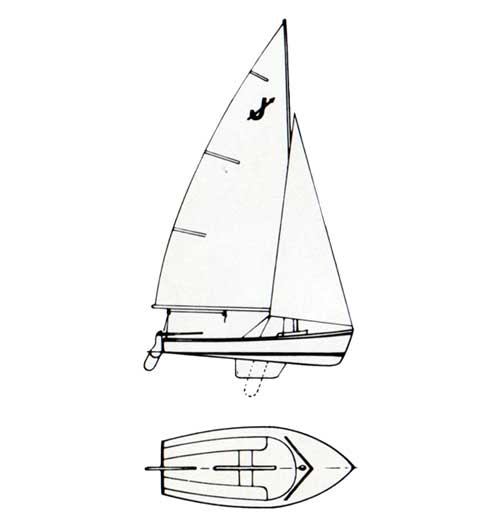

Top and Side View Diagrams of the O'Day Javelin Sailboat. | GGA Image ID # 23e77f2210

Source: O'Day 1967 Sailboat Catalog
GG Archives REF: BPODY-002-1967-C-CAT-08
