The '79 PIPERS: More Airplane For The Dollar. (1979 Brochure)
Modern technology … with a tradition of enduring value.
Piper Aircraft Corporation has pioneered in the advancement of general aviation for more than 41 years. Today the Piper line of aircraft includes 27 different models, ranging from two-place trainers and agricultural applicators to the turbo prop Cheyennes which provide efficient and luxurious transportation for business travelers throughout the world.
In the modern Piper line, equal emphasis is placed on the development and improvement of single- and twin-engine models.
Numerous Pipers are leaders in their respective classes. The Archer II is the most popular model in its class.
The high performance Dakota offers industry leadership for economical range-payload capability.
The four single-engine retractables. the Arrow IV, Turbo Arrow IV. Lance II and Turbo Lance II are also leaders.
Buyer preference for Piper high-performance twin-engine aircraft is also very strong.
These include the Piper Navajos. which account for more than half of the cabin class aircraft in this category being sold today. The Aztec F. a world favorite, has enjoyed a strong resurgence with a number of popular new features.
The Seneca II outsells its competitors in the medium light twin class, four to one. Also for 1979 is the exciting new, economical, low-cost light twin Seminole which is enjoying immediate popularity.
The new turbo prop Cheyennes have quickly earned an outstanding reputation for excellent performance and unequalled operating economies.
This brochure provides brief information on these and all other single- and twin-engine Pipers.
Piper has traditionally been a leader in flight training and today, through a world wide network of Piper Flite Centers, student pilots are offered the most professional flight training curriculum available, including sophisticated audiovisual techniques and a new modern low wing trainer.
In addition to basic pilot instruction. the Piper Flite Centers offer a complete range of Transition and Challenge Courses to upgrade pilot proficiency. These include Transition to Advanced Aircraft,
Night Flying and Co-Pilot Challenge Courses, plus advanced courses that qualify pilots for the Instrument Rating, Multi-Engine Rating and Commercial Certificate. Many Flite Centers also offer training for Instructor and Airline Transport Pilot Certificates.
Just about all Piper Flite Center Dealers provide charter service in new Piper single- and twin-engine aircraft. These airplanes can transport you and your family or business associates to thousands of airports not served by the airlines.
Regardless of the number who fly you pay only one price. You schedule your time of departure; if you plan to return the same day -- or the following -- the pilot will wait for you for only a small additional charge.
For further information, visit your nearby Piper Rite Center or Piper Dealer, or write Piper Aircraft Corporation, Lock Haven, Pa. 17745.
Tomahawk
All new jet-age technology trainer
Maximum Speed: 109 kts. 202 kmh
Cruising Speed: 108 kts. 200 kmh
Standard Range w/reserve: 468 nm 866 km
Useful Load: 582 lbs. 264 kg
Number of Seats: 2
Engine: 112 hp Lycoming
Warrior II
The ideal first plane to own
Maximum Speed 127 kts.* 235 kmh*
Cruising Speed 127 kts.* 235 kmh*
Standard Range w/reserve: 635 nm* 1177 km*
Useful Load 981 lbs. 445 kg
Number of Seats 4
EngineL 160 hp Lycoming
* with optional speed fairings
Archer II
Most popular aircraft in its class
Maximum Speed 133 kts.* 246 kmh*
Cruising Speed: 131 kts.* 242 kmh*
Standard Range w/reserve: 670 nm* 1241 km*
Useful Load: 1138 lbs. 516 kg
Number of Seats 4
Engine: 180 hp Lycoming
* with optional speed fairings
Dakota
More range-payload than any competitor
Maximum Speed 148 kts." 274 kmh*
Cruising Speed 144 kts.* 263 kmh*
Standard Range w/reserve 795 nm* 1471 km*
Useful Load: 1367 lbs. 620 kg
Number of Seats 4
Engine 235 hp Lycoming
* with optional speed fairings

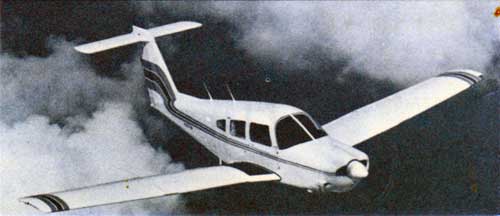

Arrow IV
The world's leading four-place retractable
Maximum Speed 152 kts. 282 kmh
Cruising Speed 143 kts. 266 kmh
Standard Range w/reserve 875 nm 1621 km
Useful Load 1157 lbs. 525 kg
Number of Seats: 4
Engine 200 hp Lycoming
Turbo Arrow IV
Extra performance for extra value
Maximum Speed 178 kts. 328 kmh
Cruising Speed 172 kts. 318 kmh
Standard Range w/reserve 860 nm 1590 km
Useful Load 1262 lbs. 572 kg
Number of Seats: 4
Engine 200 hp turbocharged Continental
Six 300
6/7 place, with husky 300 hp
Maximum Speed 156 kts.* 289 kmh*
Cruising Speed 152 kts.* 282 kmh*
Standard Range w/reserve 835 nm* 1547 km"
Useful Load 1563 lbs. 709 kg
Number of Seats 6/7
Engine 300 hp Lycoming
Conference style seating available
* with optional speed fairings
Lance II
6/7 place, 300 hp, and retractable
Maximum Speed 166 kts. 307 kmh
Cruising Speed 158 kts. 293 kmh
Standard Range w/reserve 870 nm 1610 km
Useful Load 1632 lbs. 740 kg
Number of Seats 6/7
Engine 300 hp Lycoming
Conference style seating available
Turbo Lance II
6/7 place, 300 hp turbocharged. and retractable
Maximum Speed 189 kts. 350 kmh
Cruising Speed 183 kts. 339 kmh
Standard Range w/reserve 730 nm 1352 km
Useful Load 1535 lbs. 699 kg
Number of Seats 6/7
Engine 300 hp turbocharged Lycoming
Conference style seating available
Seminole
The new economical, low-cost light twin
Maximum Speed 168 kts. 311 kmh
Cruising Speed 166 kts. 308 kmh
Standard Range w/reserve 880 nm 1630 km
Useful Load 1394 lbs. 632 kg
Number of Seats 4
Engines 180 hp Lycoming

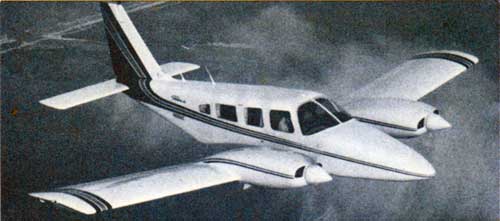

Seneca II
Outsells the competition 4 to 1
Maximum Speed 195 kts. 361 kmh
Cruising Speed 190 kts. 352 kmh
Standard Range w/reserve 609/882 nm* 1128/1634 km*
Useful Load 1722 lbs. 781 kg
Number of Seats 6/7
Engines -- Continental, 200 hp at sea level, 215 hp at 12,000 ft. Conference style seating available
* standard fuel/optional fuel
Aztec F
Legendary airframe and still a world favorite
Cruising Speed 179 kts. 331 kmh
Standard Range w/reserve 985/1320 nm* 1824/2444 km*
Useful Load 1979 lbs. 896 kg
Number of Seats 6
Engines Lycoming 250 hp
* with optional fuel

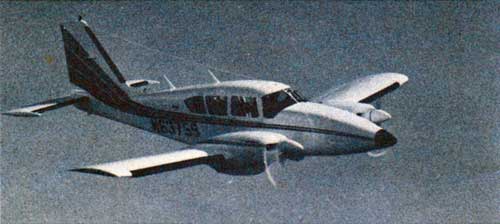

Turbo Aztec F
Automatic turbocharging for over-the-weather performance
Cruising Speed 210 kts. 389 kmh
Standard Range w/reserve 835/1145 nm* 1546/2120 km*
Useful Load 1842 lbs. 836 kg
Number of Seats 6
Engines Lycoming 250 hp, turbocharged
* with optional fuel
Aerostar 600A
Maximum Speed 226 kts. 419 kmh
Cruising Speed 218 kts. 404 kmh
Standard Range w/reserve 1321 nm 2448 km
Useful Load 1765 lbs. 801 kg
Number of Seats 6
Engine 290 hp Lycoming
Aerostar 601 B
Maximum Speed 262 kts. 486 kmh
Cruising Speed 254 kts. 471 kmh
Standard Range w/reserve 1245 nm 2307 km
Useful Load 2060 lbs. 934 kg
Number of Seats 6
Engine 290 hp Lycoming, turbocharged
Aerostar 601 P
Maximum Speed 257 kts. 476 kmh
Cruising Speed 235 kts. 436 kmh
Standard Range w/reserve 1245 nm 2307 km
Useful Load 1950 lbs. 885 kg
Number of Seats 6
Engine 290 hp Lycoming, turbocharged
Navajo
Step up to cabin class with surprising economy
Maximum Speed 227 kts. 421 kmh
Cruising Speed 215 kts. 398 kmh
Standard Range w/reserve 1065 nm 1974 km
Useful Load 2533 lbs. 1149 kg
Number of Seats 6/8
Engines Lycoming 310 hp, turbocharged
Navajo C/R
Counter-rotating props for balanced performance
Maximum Speed 230 kts. 426 kmh
Cruising Speed 220 kts. 408 kmh
Standard Range w/reserve 1040 nm 1927 km
Useful Load 2441 lbs. 1107 kg
Number of Seats 6/8
Engines Lycoming 325 hp, turbocharged
Chieftain
Stretched cabin … counter-rotating props
Maximum Speed 235 kts. 435 kmh
Cruising Speed 221 kts. 410 kmh
Standard Range w/reserve 950 nm 1760 km
Useful Load 2824 lbs. 1280 kg
Number of Seats 6/10
Engines Lycoming 350 hp, turbocharged
Cheyenne I
Lowest cost turbo prop
Maximum Cruise 249 kts. 461 kmh
Range w/reserve (optional fuel) 1260 nm 2335 km
Range w/reserve (standard fuel) 940 nm 1742 km
Useful Load 3850 lbs. 1746 kg
Number of Seats 7
Engines Pratt & Whitney, PT6A-11. 500 shp
Cheyenne II
Turbo prop flagship of the Piper fleet
Maximum Cruise 283 kts. 524 kmh
Standard Range w/reserve 1510 nm 2798 km
Useful Load 4074 lbs. 1848 kg
Number of Seats 6/8
Engines Pratt & Whitney, PT6A-28 turbines, 620 shp

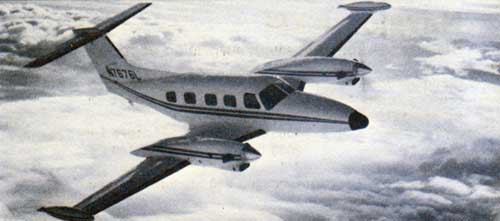

Cheyenne III
Piper's top of the line turbo prop
Maximum Cruise 301 kts. 558 kmh
Range w/reserve (optional fuel) 2100 nm 3890 km
Useful Load 4800 lbs. 2177 kg
Number of Seats 6/11
Engines Pratt & Whitney, PT6A-41, 680 shp
Super Cub
Versatile utility plane with STOL-like capability
Maximum Speed 113 kts. 209 kmh
Cruising Speed 100 kts. 185 kmh
Standard Range w/reserve 400 nm 741 km
Useful Load 804 lbs. 365 kg
Number of Seats 2
Engine 150 hp Lycoming

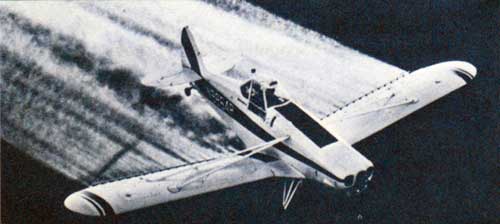

Pawnee D 235
Popular, efficient ag plane
Engine 235 hp Lycoming
Hopper Load 1200 lbs. 545 kg
Hopper Capacity 21 cu. ft. 150 gals
Brave 300
Advanced design ag plane with big hopper capacity
Engine 300 hp Lycoming
Hopper Load 1900 lbs. 862 kg
Hopper Capacity 30 cu. ft. 225 gal. or 38 cu. ft. 275 gal.
Brave 375
Extra performance for larger working loads
Engine 375 hp Lycoming
Hopper Load 1900 lbs. 862 kg
Hopper Capacity 38 cu. ft. 275 gal.
This performance information is based on an airplane flown at maximum gross weight under standard sea level atmospheric conditions and on the latest data available at the time of publication approval. Actual performance depends on pilot techniques and other factors.
It is the responsibility of the pilot to determine that all operations are conducted within approved limits of design gross weight, center of gravity and in accordance with the FAA-Approved Airplane Flight Manual which is the only official source of operating parameters and performance information.
Piper Aircraft Corporation reserves the right to make changes in specifications, materials, equipment or prices at any time without prior notice or to discontinue models as required.
Publication Number: 935-9-364
Published:
10/1/1978 Printed in USA
