The Piper Cheyenne II XL - Specifications, Diagrams and Photo (1981)

The 1981 Piper Cheyenne II XL

The Piper Cheyenne II XL Turboprop for business- here are some of the basic specifications, dimensions, cutaway diagram and artist conceptual photograph of flagship of the business fleet.

Cheyenne II XL Specifications

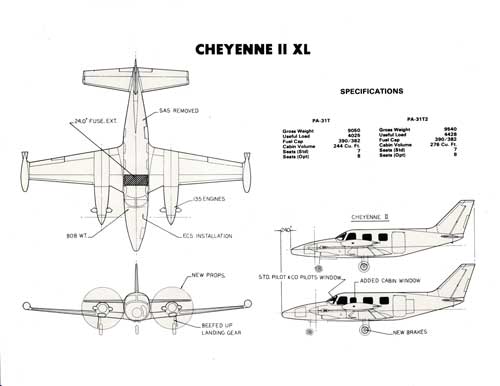

Specifications and Diagrams of the 1981 Piper Cheyenne II XL

Model PA-31T

  • Gross Weight: 9,050
  • Useful Load: 4,025
  • Fuel Cap: 390 / 382
  • Cabin Volume: 244 Cubic Feet
  • Seats (Standard): 7
  • Seats (Optional): 8

Model PA-31T2

  • Gross Weight: 9540
  • Useful Load: 4,428
  • Fuel Cap: 390 / 382
  • Cabin Volume: 276 Cubic Feet
  • Seats (Standard): 7
  • Seats (Optional): 8

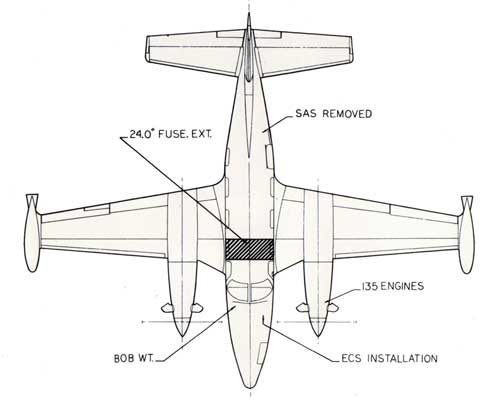

Top View Diagram of the Cheyenne II XL

Top View Diagram of the Cheyenne II XL - 1981

Highlights inluded: BOB WT, ECS Installation, I35 Engines, SAS Removed, and 24.0" Fuse Ext.

View facing Front of Aicraft

Piper Cheyenne II XL Front Diagram 1981

The Piper Cheyenne II XL offers New Props and Beefed Up Landing Gear in 1981

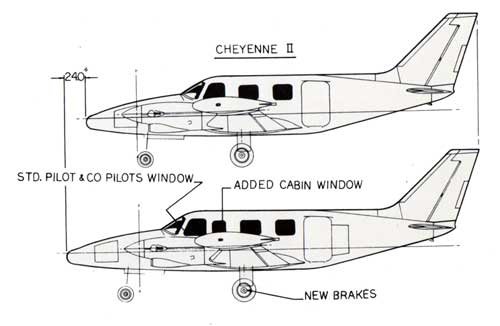

Cheyenne II XL Side View Diagram

Side View Diagram of the Piper Cheyenne II XL from 1981

Side view diagram emphisizes Standard Pilot and Co-Pilots Window, Added Cabin Window and New Brakes.

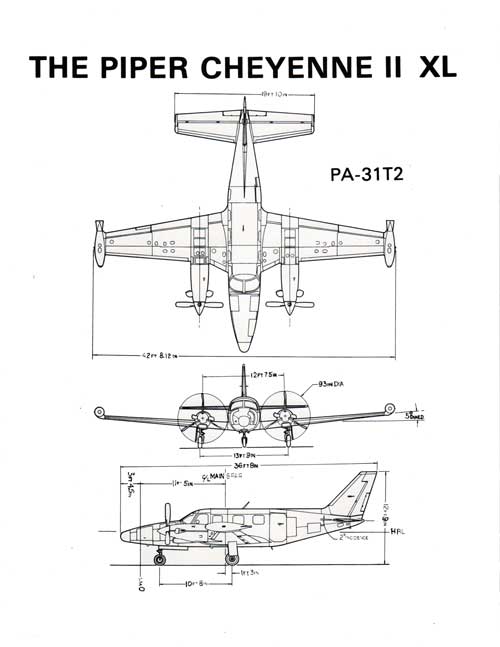

The Piper Cheyenne II XL Dimensions (Model PA-31T2

Schematic Drawing and Dimensions of the Piper Cheyenne II XL from 1981

Dimensions referred to in diagram include: Wingspan of 42 Feet, 8.12 Inches; Diameter of Props: 93 Inches, Wheelbase: 13 Feet, 9 Inches, Distance between engines (Center) 12 Feet, 7.5 Inches; Nose to Tail: 36 Feet, 8 Inches, Distance betwen Nose and Landing wheels: 10 Feet, 8 Inches; Height of Tail Fin: 12 Feet, 9 Inches.

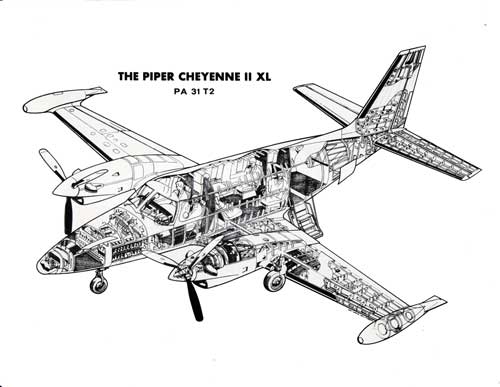

Cutaway Diagram of teh Piper Cheyenne II XL - Model PA 31 T2

Cutaway Diagram of the 1981 Piper Cheyenne II XL

PIPER
More airplane for the dollar.

Piper Aircraft Corporation, Lock Haven, PA 17745

Member of GAMA

GG Archives REF: BPPAC-032-1981-BW-SLT
